Fully Automated Washer Disinfector SMT-500/550
CDC (Centre for disease control) Test
Washing effect
CDC test SMT 500 washer and disinfector by washing common surgical instruments, dental drill, anesthesia and breathing tubes, humidification bottles and baby feeding bottle. The result of absorbance values of residual protein pollutant is less than 0.020 and approval rate is 100%.
Disinfection program
CDC test SMT 500 washer and disinfector approved according to sterilization technical standards and programs, includes low temperature disinfection, high temperature disinfection and chemical disinfection.
Technical Specification
| Model | Power Supply | Temperature of heat sterilization | Capacity | Water consumption/ cycle | Preset program | Overall dimensions | Power |
|---|---|---|---|---|---|---|---|
| SMT500 | AC380V 50Hz | 0-98℃ | 500L | 30L | 6 | 1870*1340*1026 (mm) | 35K w |
| SMT550 | AC380V 50Hz | 0-98℃ | 550L | 30L | 6 | 1870*1340*1026 (mm) | 35K w |

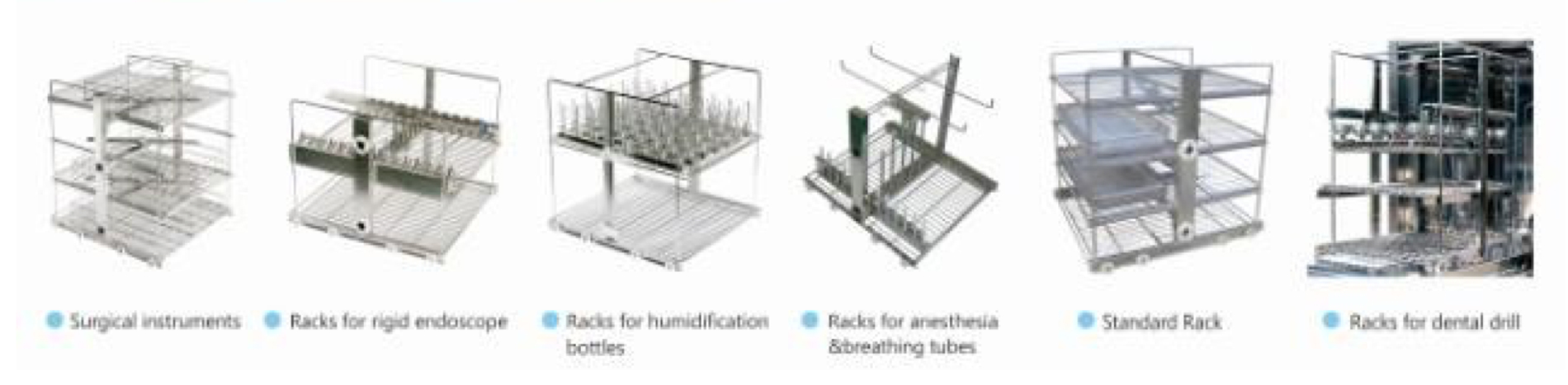

Racks For Full Automatic Washer Machine

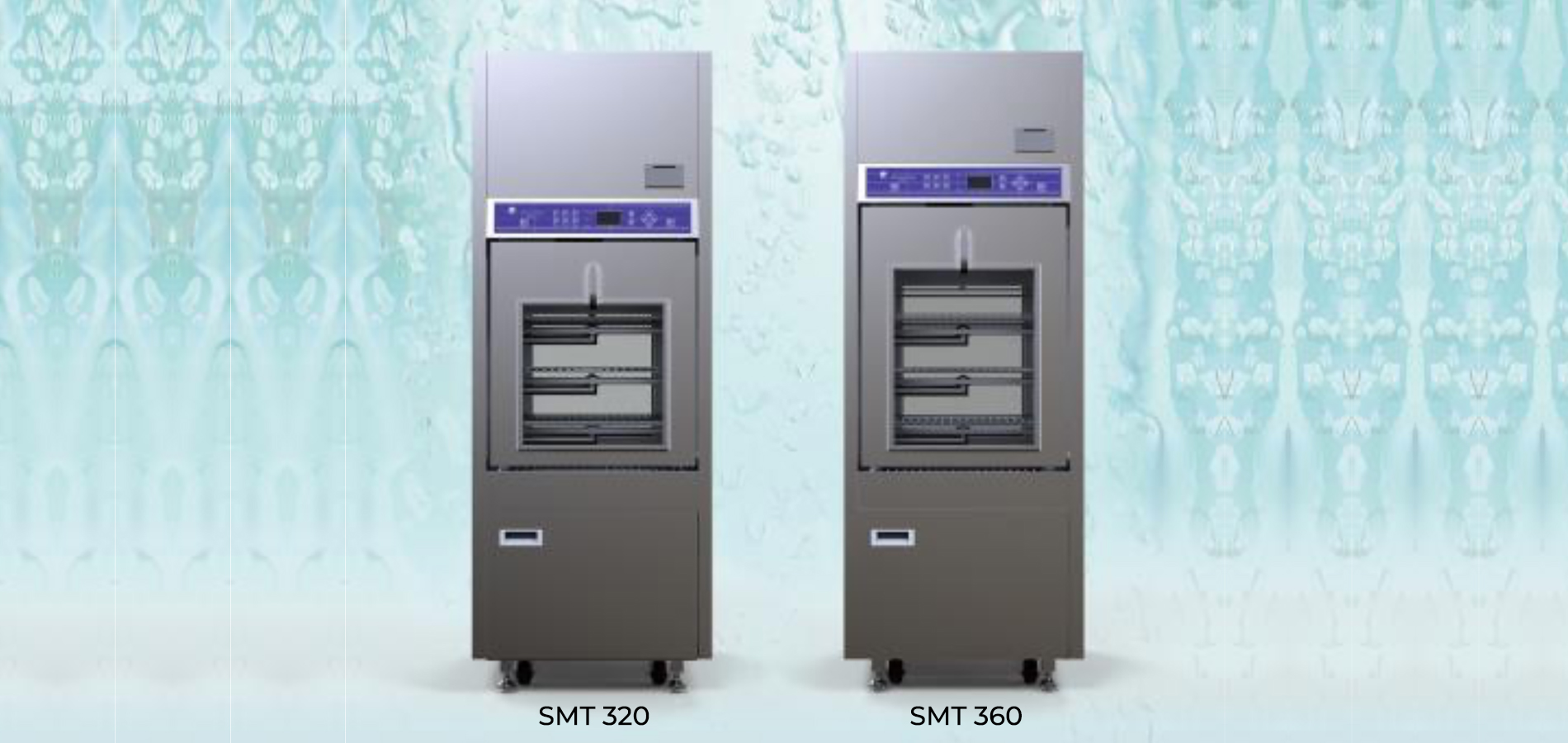

Fully Automated Washer Disinfector SMT-320/360
CDC (Centre for disease control) Test
Washing effect
CDC test SMT 320/360 washer and disinfector by washing common surgical instruments, dental drill, anesthesia and breathing tubes, humidification bottles and baby feeding bottle. The result of absorbance values of residual protein pollutant is less than 0.020 and approval rate is 100%.
Disinfection program
CDC test SMT 320/360 washer and disinfector approved according to sterilization technical standards and programs, includes low temperature disinfection, high temperature disinfection and chemical disinfection.
Certificates and patents
- Patent of high-speed elastic connector
- Patent of water cooling and drying device for washer disinfector
- Patent of washer disinfector with traceability Certificates of ISO13485, ISO9001, CE and etc
Technical Specification
| Model | Power Supply | Water Temp | Capacity | Water consumption/ cycle | Preset program | Overall dimensions | Power | Basket |
|---|---|---|---|---|---|---|---|---|
| SMT360 | AC380V 50Hz | 20-98℃ | 360L | 15L | 6 | 1865*700*700(mm) | 17K w | 10 |
| SMT320 | AC380V 50Hz | 20-98℃ | 320L | 15L | 6 | 1860*700*700(mm) | 17K w | 8 |
Operation Instructions

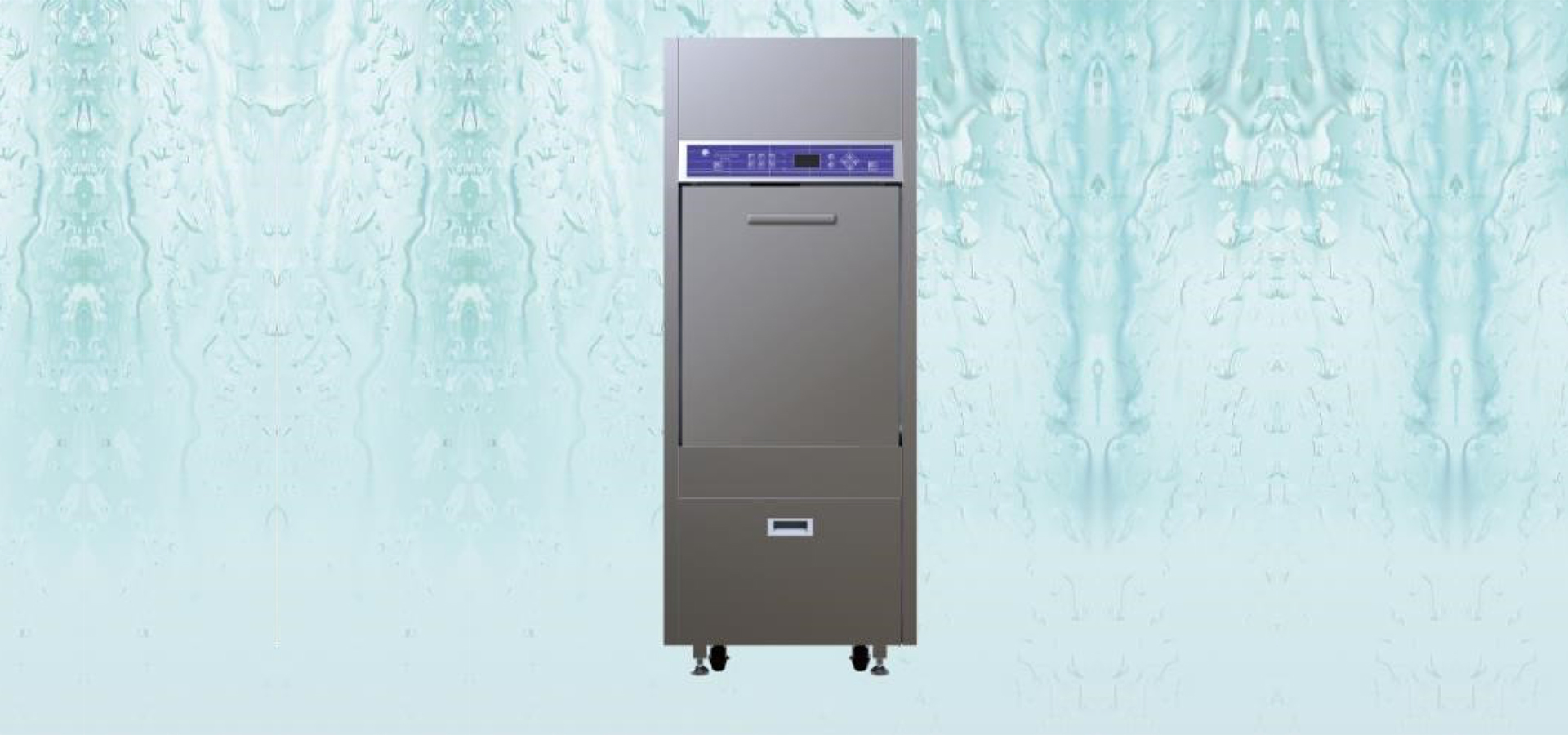

Fully Automated Washer Disinfector SMT-200
Product feature:
Humanized control system and easy operation;
Single door, small footprint;
Shorter cycle time and higher efficiency.
Range of application:
Surgical instruments, dental equipment, endoscope and etc.
Larger capacity:
Instruments of 2 operation and 24 dental drills.

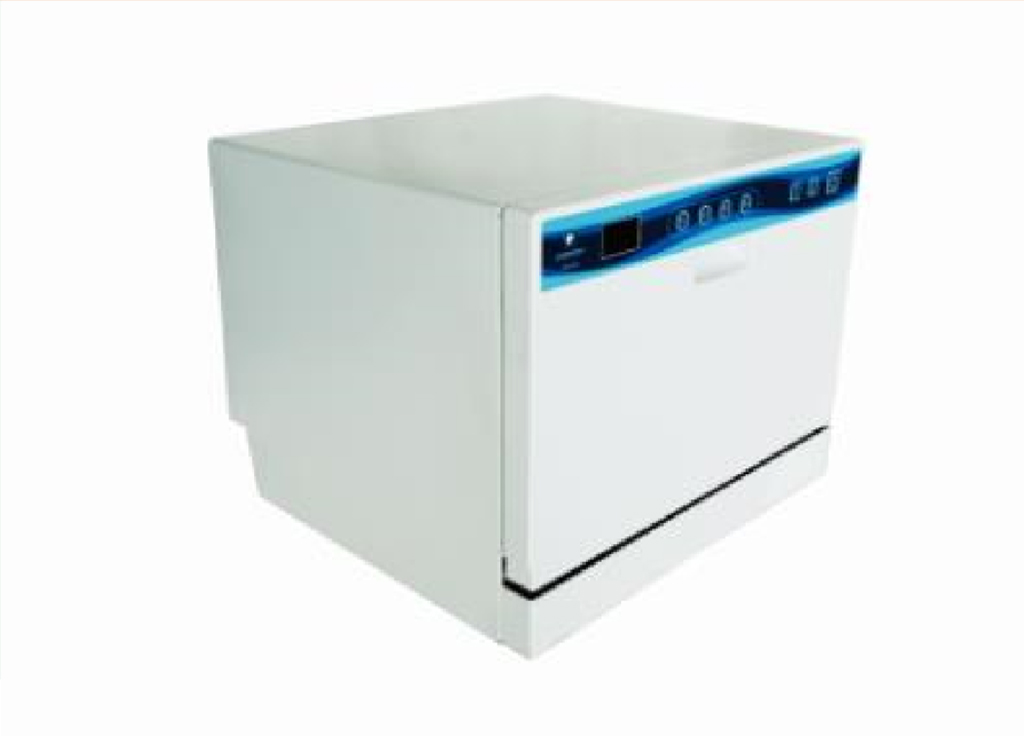

Full Automated Washer Disinfector SMT-60 (Bench top)
Product feature:
Bench top, space-saving
Small size and it can be easily moved
Shorter cycle time and higher efficiency
Range of application:
Surgical instruments, dental equipment, endoscope and etc.
Capacity:
Instruments from 1 operation and 12 dental drills
Technical Specification
| Model | Power Supply | Capacity | Preset program | Overall dimensions |
|---|---|---|---|---|
| SMT-60 | AC220V 50Hz | 60L | P1: Standard washing (28min) P2:Quick washing(11min) |
570*470*500(mm) |
Advantages:
- The first manufacturer in the world to implement Android operating system to washer disinfectors and has achieved higher level of technology on infection control equipment.
- The first manufacturer in the world to apply fingerprint access control to washer disinfectors which is easier and faster for operators to access the interface and enhances the traceability.
- The first washer disinfector in the world equipped with cloud services that enables real-time monitoring anytime and anywhere.
- The first washer disinfector in the world with the function of text message notification (SMS) to inform the operator of the running status, the cycle end, equipment faults, maintenance and etc.
- The first and only one in the world that plays training video, online update of industrial news, infection control knowledge and user manual.
- The first washer disinfector in the world with the function of real-time voice intercom communication between decontamination area and clean area to make communication easier for the CSSD staffs.
Quality:
- CE
- FDA
- FSC
- ISO9001
- ISO13485
Patents:
- Patent of high-speed automatic sliding door
- Patent of high-speed elastic connector
- Patent of water cooling and drying device for washer disinfector
- Patent of washer disinfector with traceability
- Patent of washer disinfector with finger print access control
- Patent of washer disinfector with SMS
- Patent of washer disinfector with voice intercom system
-
Smart operating system:
The machine operates on Android operating system with the real-time monitoring enabled. The machine status and data can be delivered with the traceability system by wire or wireless connection to monitor the washer disinfector in real time.
-
Finger print access control:
Users can access the operating interface of the machine by finger print ID or password. The finger print ID technology of the machine records the biometric identity of the operator to enable traceability of the responsible operator.
-
Video training:
User can receive information on operations and infection control from the machine.
-
Text message notification(SMS):
The machine operator can receive information about the machine status by text message (including running information and fault information)
-
Connections to network:
RJ 45 connection, WIFI module, 3G network module and USD data interface.
-
Cloud service:
Machine is connected with network for data backup via web cloud. Data can be downloaded and synchronized from the cloud after maintenance and updates.
The authorized personnel can monitor the operations of the machine at anytime and anywhere.
Main functions of cloud: cloud back up, cloud recovery and cloud curve. -
Online service:
Provides the latest news on medical field;
Provides the latest information on equipment;
Updates the latest news on infection control industry;
Provides operating manual and information on maintenance; Online service is available anytime. -
Voice intercom system:
BAIX voice intercom system enables the real-time communication between decontamination area and clean area.
The voice filter enhances the voice between staffs during communication in a noisy environment and a high quality voice is guaranteed. -

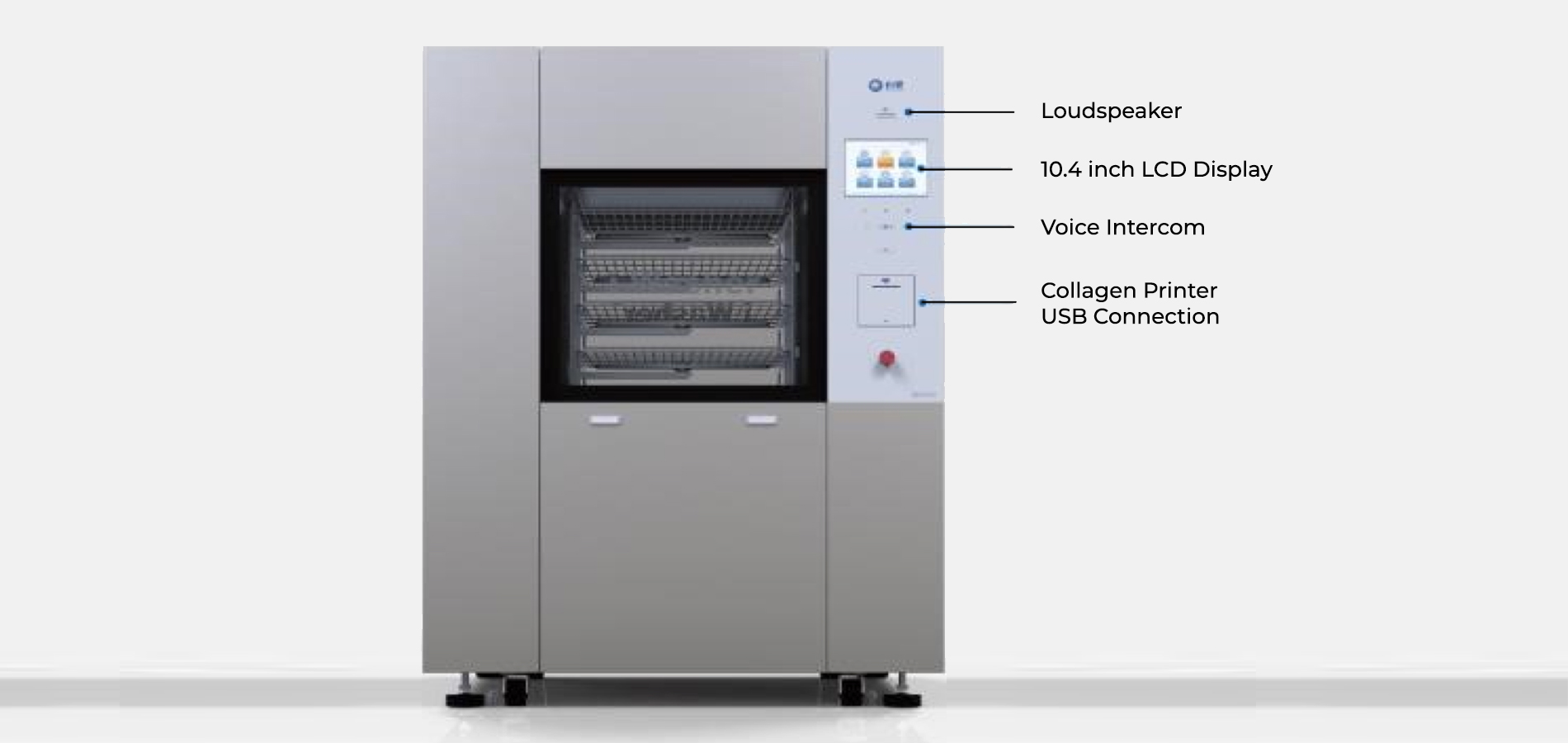

Double synchronized high definition LCD:
10.4 inch LCD with image resolution 800 X 600 with user friendly interface.
-
Standard spare parts:
All major parts are from reliable manufacturers, life span of the parts are extended due to short cycle time and high efficiency.
